BinTray

Generator

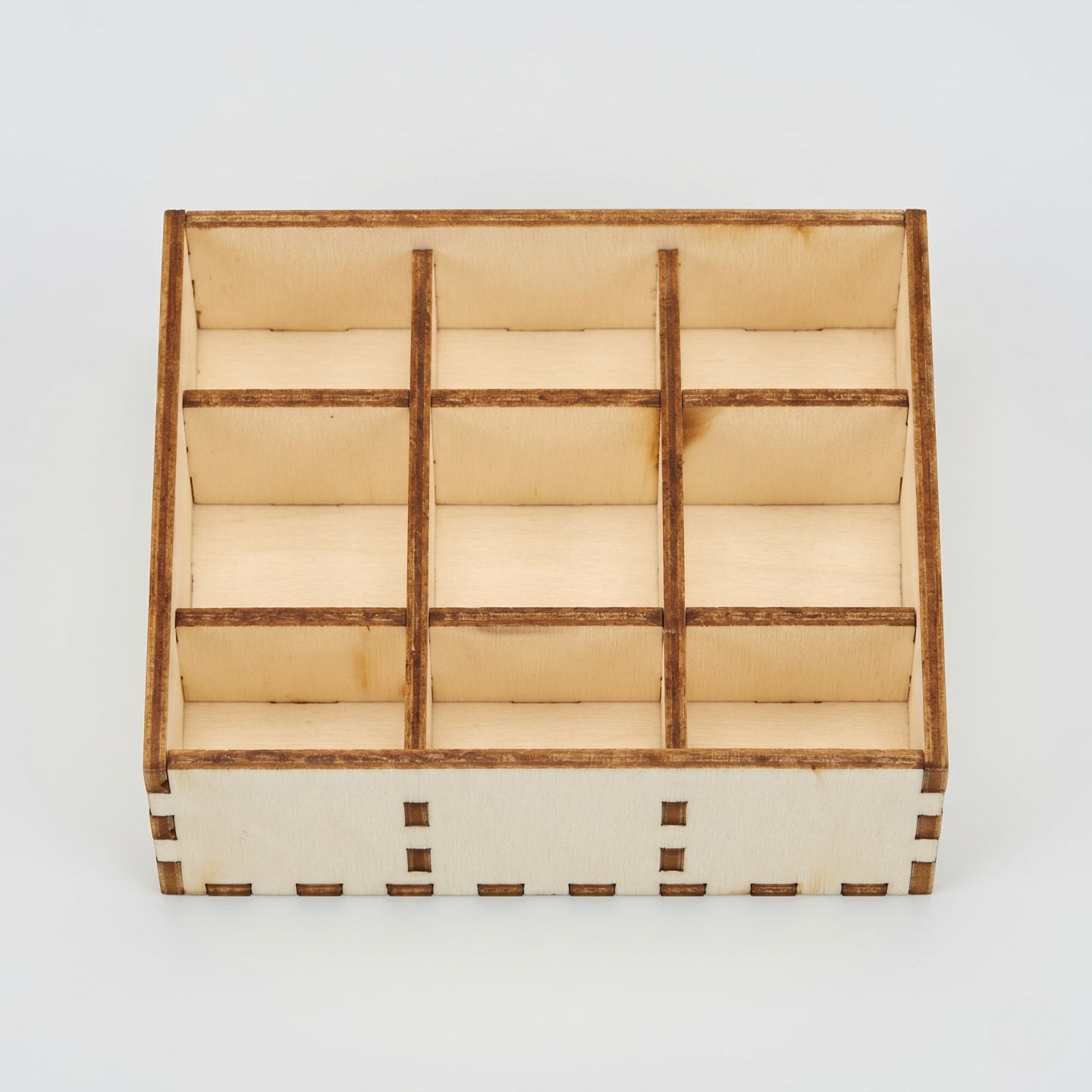

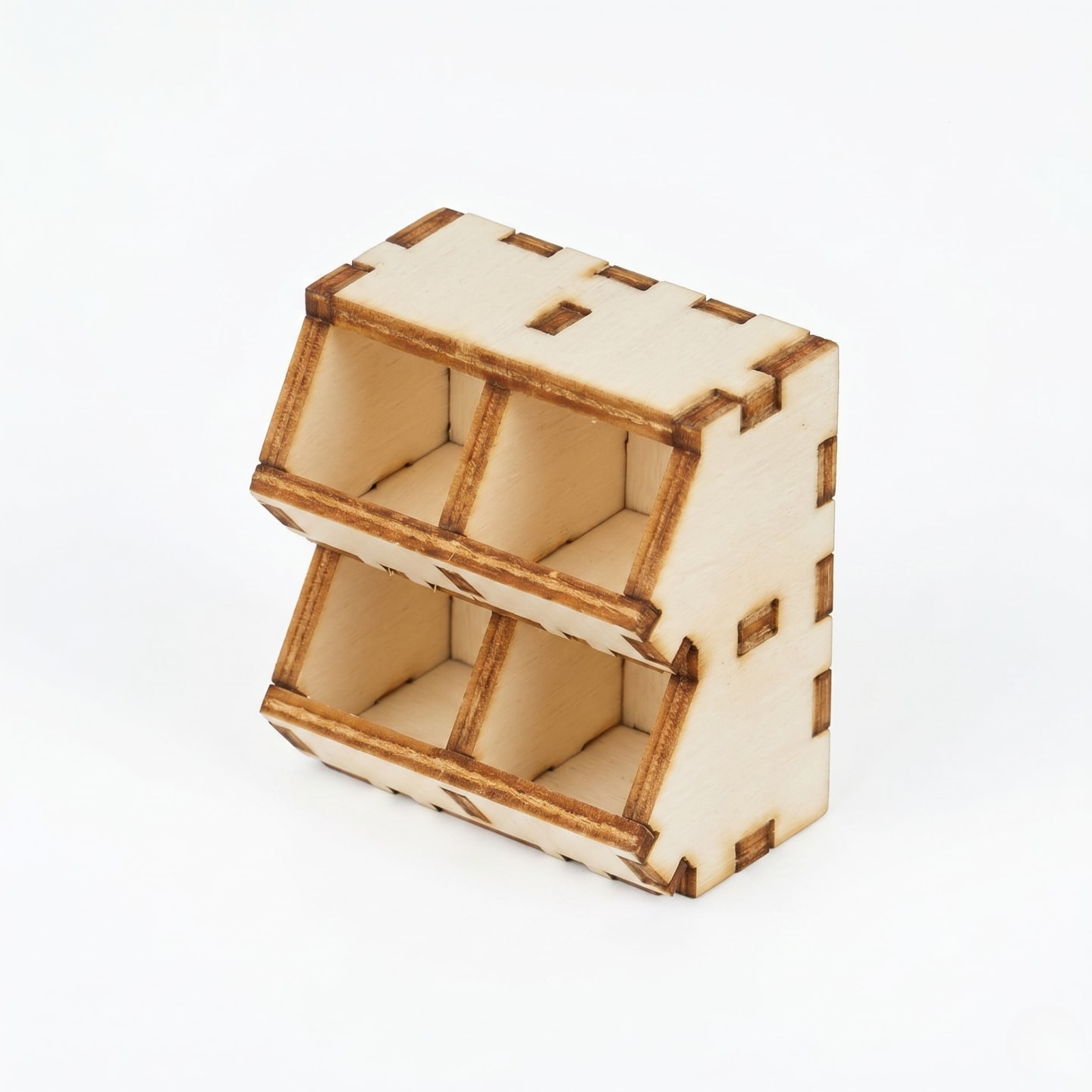

A Type tray variant to be used up right with sloped walls in front

Settings for Finger Joints

style

style of the fingers

surroundingspaces

space at the start and end in multiple of normal spaces

bottom_lip

height of the bottom lips sticking out (multiples of thickness) FingerHoleEdge only!

edge_width

space below holes of FingerHoleEdge (multiples of thickness)

extra_length

extra material to grind away burn marks (multiples of thickness)

finger

width of the fingers (multiples of thickness)

play

extra space to allow finger move in and out (multiples of thickness)

space

space between fingers (multiples of thickness)

width

width of finger holes (multiples of thickness)

BinTray Settings

sections left to right in mm 🛈

inner depth in mm (unless outside selected)

sections bottom to top in mm 🛈

outside

treat sizes as outside measurements 🛈

hole_dD

mounting hole diameter (shaft:head) in mm 🛈

front

fraction of bin height covered with slope

Default Settings

thickness

thickness of the material (in mm) 🛈

burn

burn correction (in mm)(bigger values for tighter fit) 🛈

format

format of resulting file 🛈

labels

label the parts (where available)

reference

print reference rectangle with given length (in mm)(zero to disable) 🛈

tabs

width of tabs holding the parts in place (in mm)(not supported everywhere) 🛈

qr_code

Add a QR Code with link or command line to the generated output

inner_corners

style for inner corners 🛈

spacing

spacing around parts (multiples of thickness [: extra space in mm]) 🛈

debug

print surrounding boxes for some structures 🛈
