This insert was designed with 3 mm plywood in mind, and should work fine with
materials around this thickness.

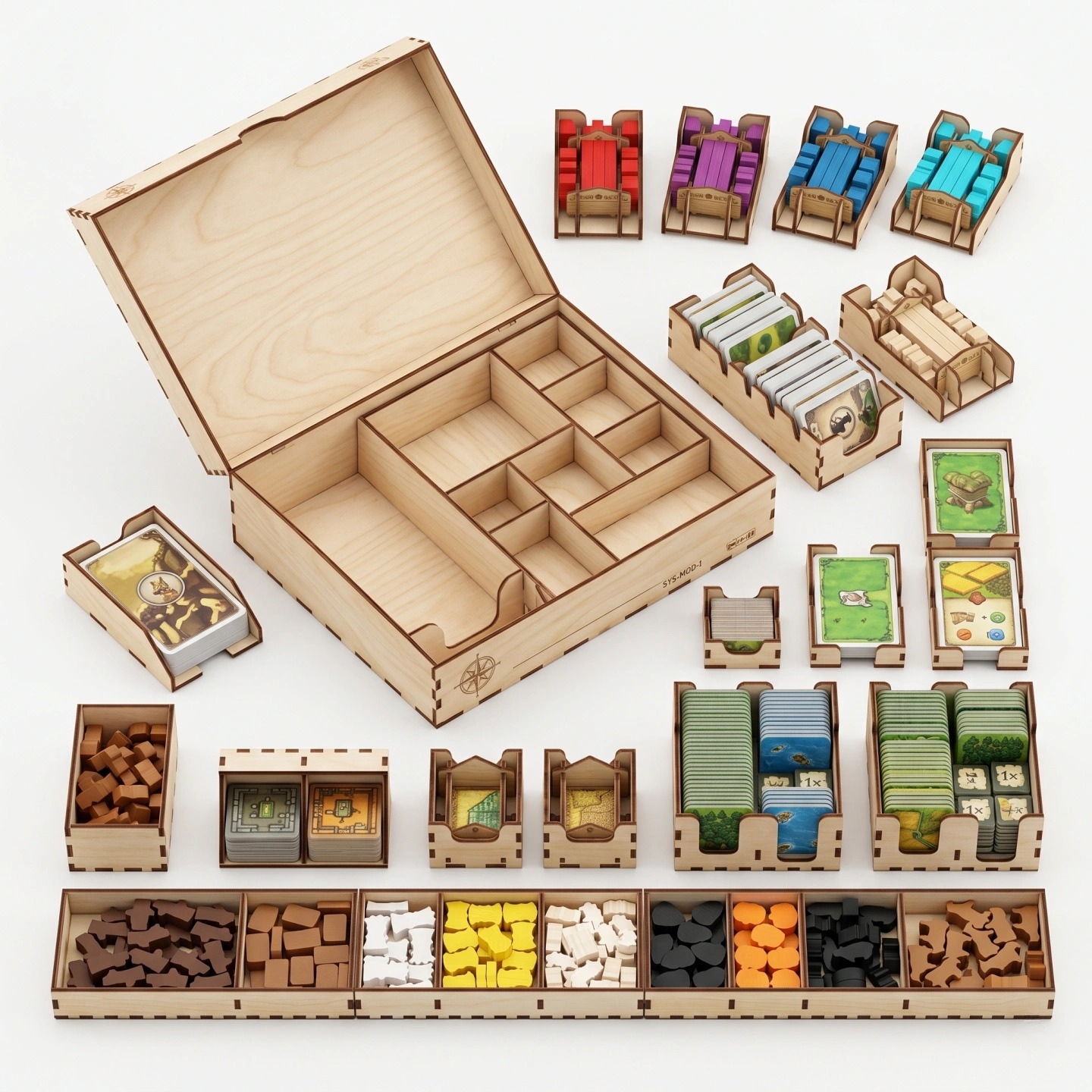

This is an insert for the Agricola Revised Edition
board game. It is specifically designed around the Farmers Of The Moor expansion,
and should also store the 5-6 players expansion
(not tested, but I tried to take everything into account for it, please inform
us if you tested it).
It can be stored inside the original game box, including the 2 expansions,
with the lid slightly raised.
The parts of a given element are mostly generated next to each other vertically.
It should be straightforward to match them.
Here are the different elements, from left to right in the generated file.
Card tray
The cards are all kept in a tray, with paper dividers to sort them easily. When
the tray is not full of cards, wood dividers slides in slots in order to keep
the cards from falling into the empty space.
There should be enough space for the main game, Farmers Of The Moor, and the 5-6
player expansion, but not much more than that.
To keep a lower profile, the cards are at a slight angle, and the paper dividers
tabs are horizontal instead of vertical.
A small wall keeps the card against one side while the tabs protrude on the
other side, above the small wall.
The wall with the big hole is the sloped one. It goes between the two
"comb-like" walls first, with its two small holes at the bottom. Then there is a
low-height long wall with a sloped edge which should go from the sloped wall to
the other side. You can finish the tray with the last wall at the end.
Upper level trays
4 trays with movable walls are used to store resources. They were designed to
store them in this order:
- Stone / Vegetable / Pig / Cow
- Reed / Grain / Sheep
- Wood / Clay
- Food / Fire
The wall would probably be better if fixed instead of movable, but I would like
to test with the 5-6 player expansion to be sure their positions are correct
with it too.
The little feet of the movable wall should be glued. The triangles are put
horizontally, with their bases towards the sides.
Lower level tray
The lower level tray is used to store the horses.
Room/Field tiles
Two boxes are generated to store the room/field tiles. One for the wood/field,
the other for the clay/stone. They are stored with the main opening upside, but
I prefer to use them during play with this face on the side.
Moor/Forest and miscellaneous tiles
A box is generated to store the Moor/Forest tiles, and some other tiles such as
the "multiple resources" cardboard tokens.
The Moor/Forest tiles are at the same height as the Room/Field, and the upper
level trays are directly on them. The horse box and player box are slightly
lower. This Moor/Forest box have a lowered corner (the one for the miscellaneous
tiles). Two cardboard pieces can be stored between the smaller boxes and the
upper level trays (as seen on the picture).
Be sure to match the pieces so that the walls with smaller heights are next to
each other.
Players bit boxes
Each player has its own box where the bits of his color are stored.
The cardboard bed from Farmers Of The Moor is central to this box.
- The fences are stored inside the bed
- The bed is placed in the box, with holes to keep it there (and to take less
height)
- The stables are stored in the two corners
- The five farmers are stored between the bed and the three walls, alternatively
head up and head down.
During assembly, the small bars are put in the middle holes. The two bigger
holes at the ends are used for the bed feet. The bar keeps the bed from
protruding underneath.
